OMEGAlpes Structure

The models are bases on general, energy and actor classes. The structure of the library is described on the following class diagrams:

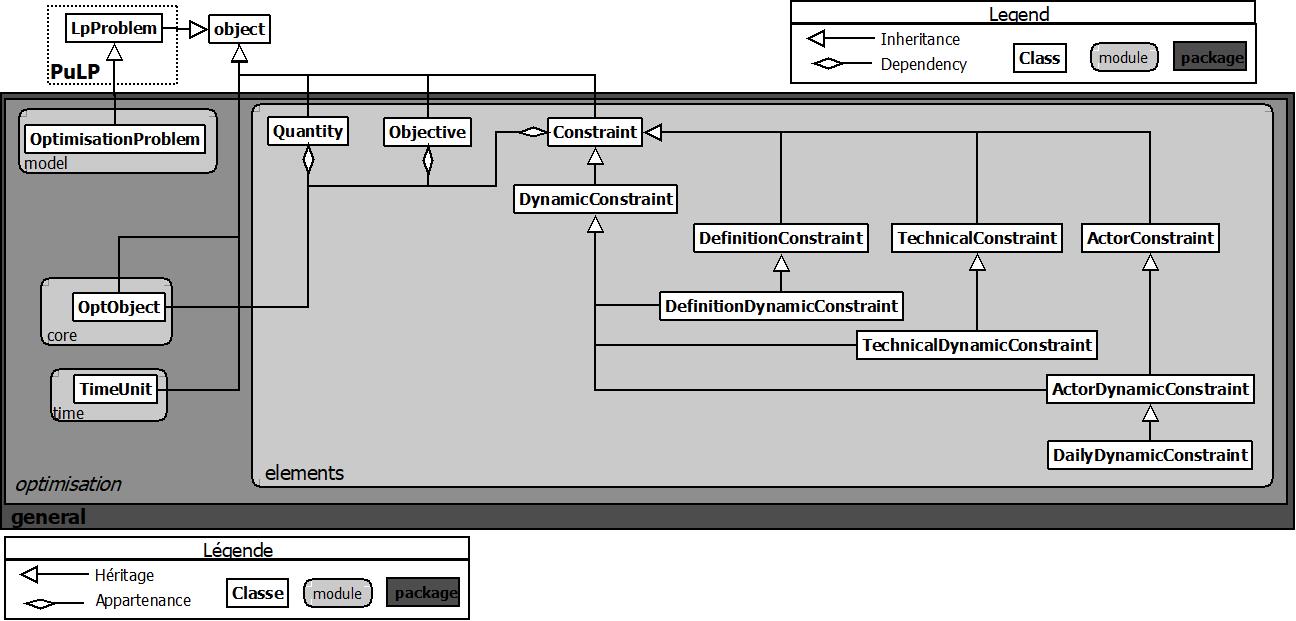

Figure: OMEGAlpes general class diagram

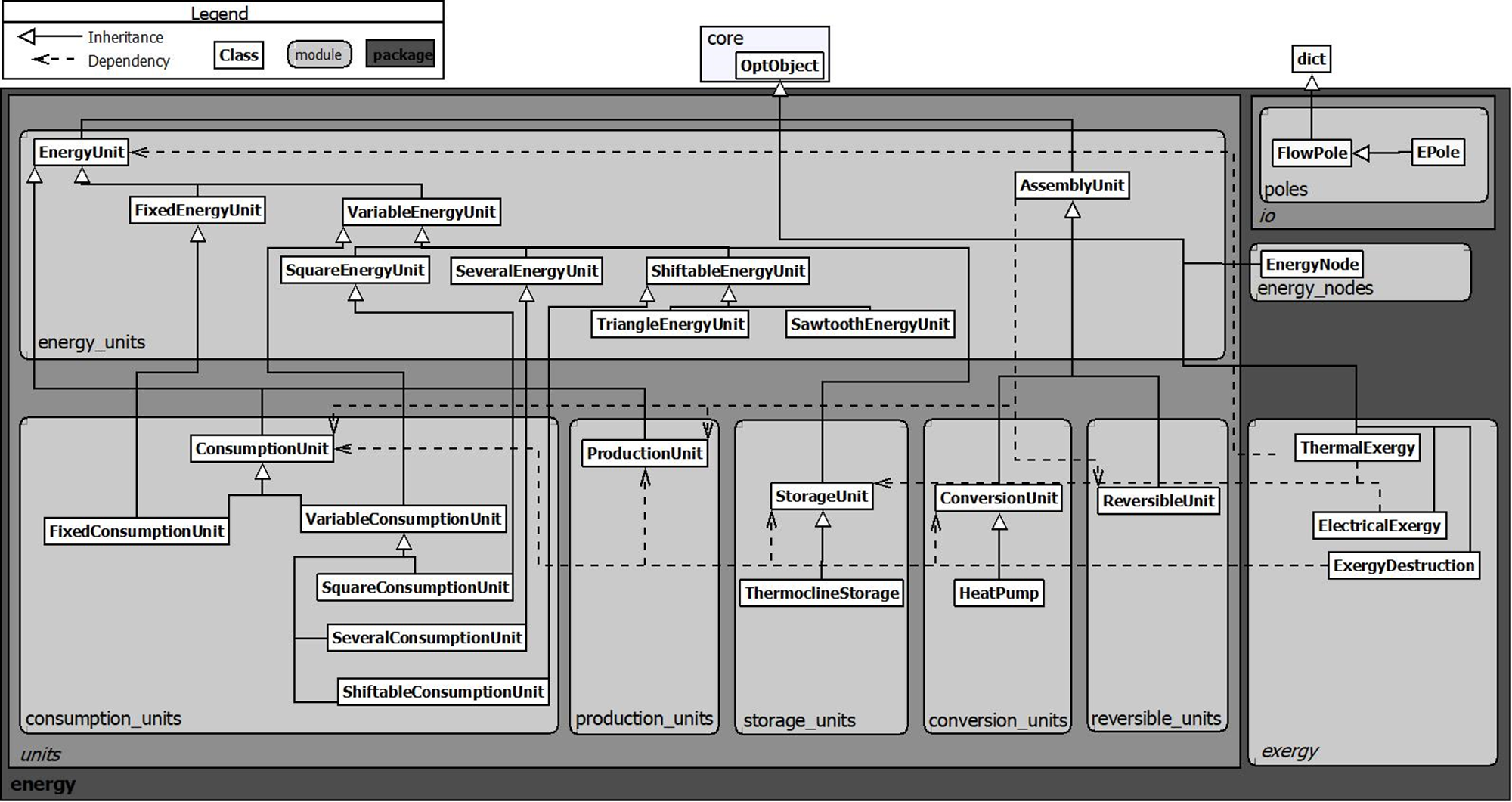

Figure: OMEGAlpes energy class diagram

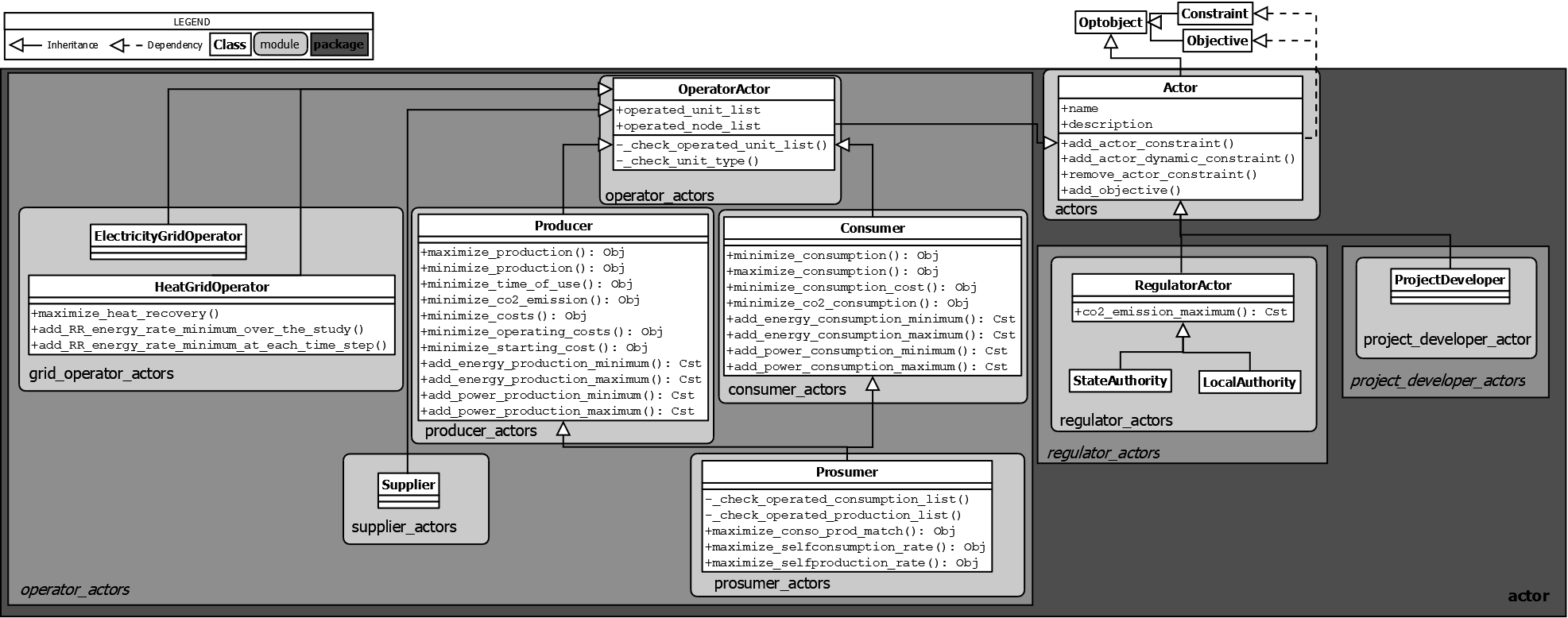

Figure: OMEGAlpes actor class diagram

The energy units are detailed in the energy package

• energy package
  • Energy_units module
  • Consumption_units module
  • Production_units module
  • Conversion_units module
  • Storage_units module
  • Reversible_units module
  • Energy_nodes module
  • Thermal Building module
  • Exergy module
  • Poles module

The energy package also includes an exergy module

• exergy module

The actor classes enables to build the energy model considering pre-defined stakeholders’ constraints and objectives

• actor package
  • Actor module
  • Area of responsibility
  • Operator_actors module
  • Consumer_actors module
  • Producer_actors module
  • Prosumer_actors module
  • Regulator_actors module

The general classes helps to build the units, the model and to plot the results

• general package
  • Elements module
  • Core module
  • Time module
  • Model module
  • Input Data module
  • Output Data module
  • Plots module
  • Maths module
